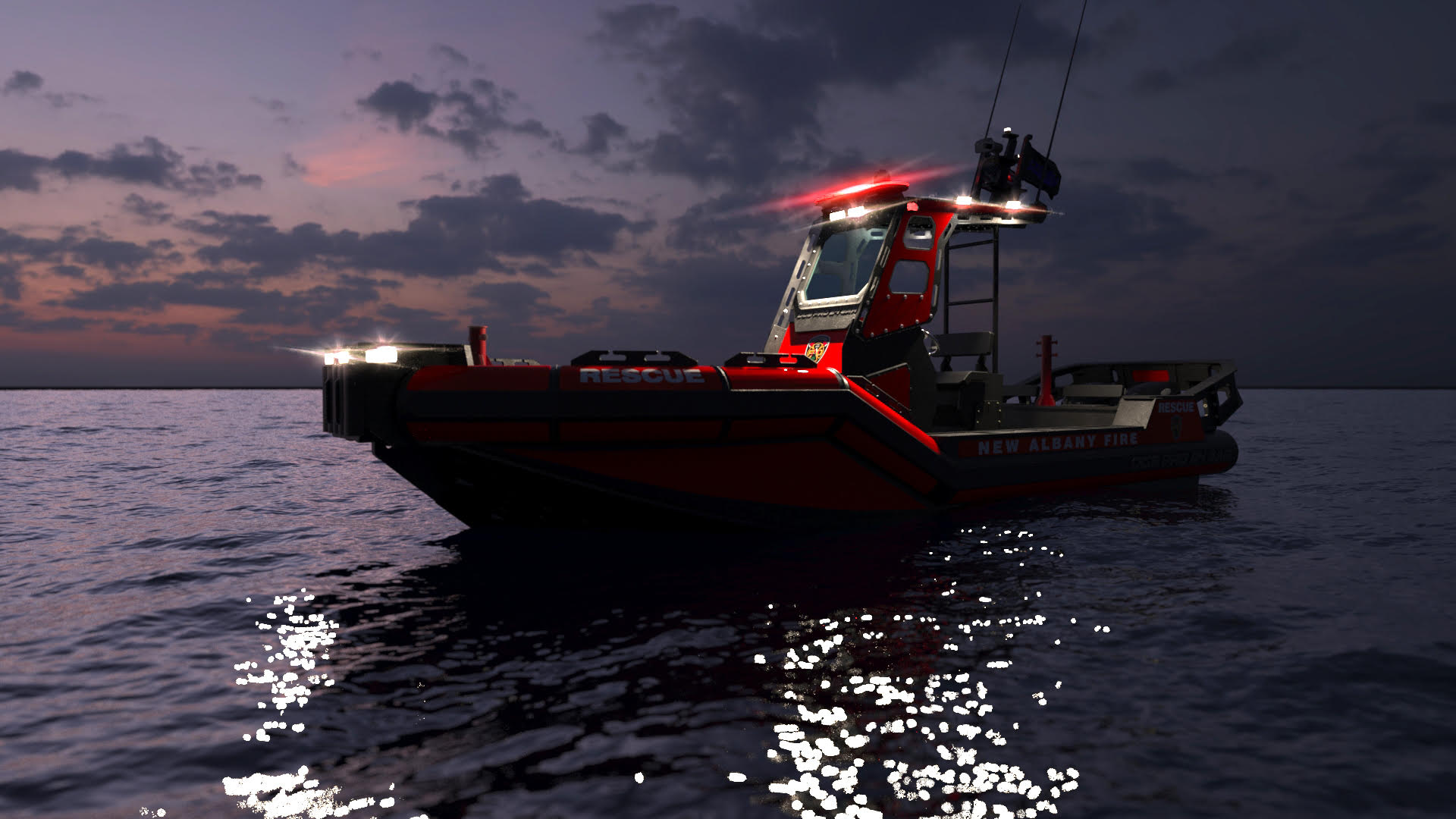

DGS PRO 24

Single or twin engine, MAXIMUM VERSATILITY

The DGS PRO 24 is the most compact vessel in our lineup with the option for twin-engine propulsion—delivering unparalleled control, redundancy, and performance in a sub-25-foot platform. With an LOA of 24.6 feet (7.5 m) and a beam of 8.5 feet (2.6 m), it offers exceptional stability and mission versatility in a highly maneuverable format.



Engineered for operators who require high performance and tactical flexibility, the PRO 24 can be powered by either a single outboard engine of up to 350 HP, or twin outboards up to 225 HP each (450 HP total). This configuration enables speeds of up to 45 knots*, with quick acceleration and agile handling for both nearshore and offshore operations.



Built on a 21° deadrise deep-V hull with reinforced HDPE structure, the PRO 24 delivers superior shock absorption, impact resistance, and seaworthiness—even in rough conditions. With a fuel capacity of 152 gallons (575 liters), its range of 220 nautical miles makes it suitable for extended patrol, response, or support missions.



Capable of transporting up to 10 personnel (1 crew + 9 passengers), the vessel features an light load of 7,720 lbs (3,500 kg) and a maximum load capacity of 2,866 lbs (1,300 kg), making it ideal for tactical, rescue, or enforcement roles.

Compact in footprint yet powerful in execution, the PRO 24 is mission-ready from the first launch.

LENGHT OVERALL (LOA) (feet) 24,6
ESLORA TOTAL (metros) 7,5
BEAM OVERALL (BOA) (feet) 8,5
MANGA MAXIMA (metros) 2,6
DEADRISE AT TRANSOM 21º
ÁNGULO DE QUILLA EN LA POPA 21º
TOP SPEED (knots) 41
VELOCIDAD MÁXIMA (nudos) 41
MAX RANGE (NM) 150
ALCANCE MÁXIMO (millas náuticas) 150
CARGO/FUEL/PERSONNEL CAPACITY (lbs) 2,866
CAPACIDAD DE CARGA (carga + combustible + pasajeros) (kg) 1.300
FUEL CAPACITY (gallons) 152
CAPACIDAD DE COMBUSTIBLE (litros) 575
PASSENGER CAPACITY (crew + pax) 1 + 9
CAPACIDAD DE PASAJEROS (tripulación + pasajeros) 1 + 9
MAX HP 450
HP MAX 450
LIGHT LOAD (lbs) 4,400
CARGA LIGERA (kg) 2.900
OPERATIONAL LOAD (lbs) 7,054
CARGA OPERATIVA (kg) 3.200

general arrangement
